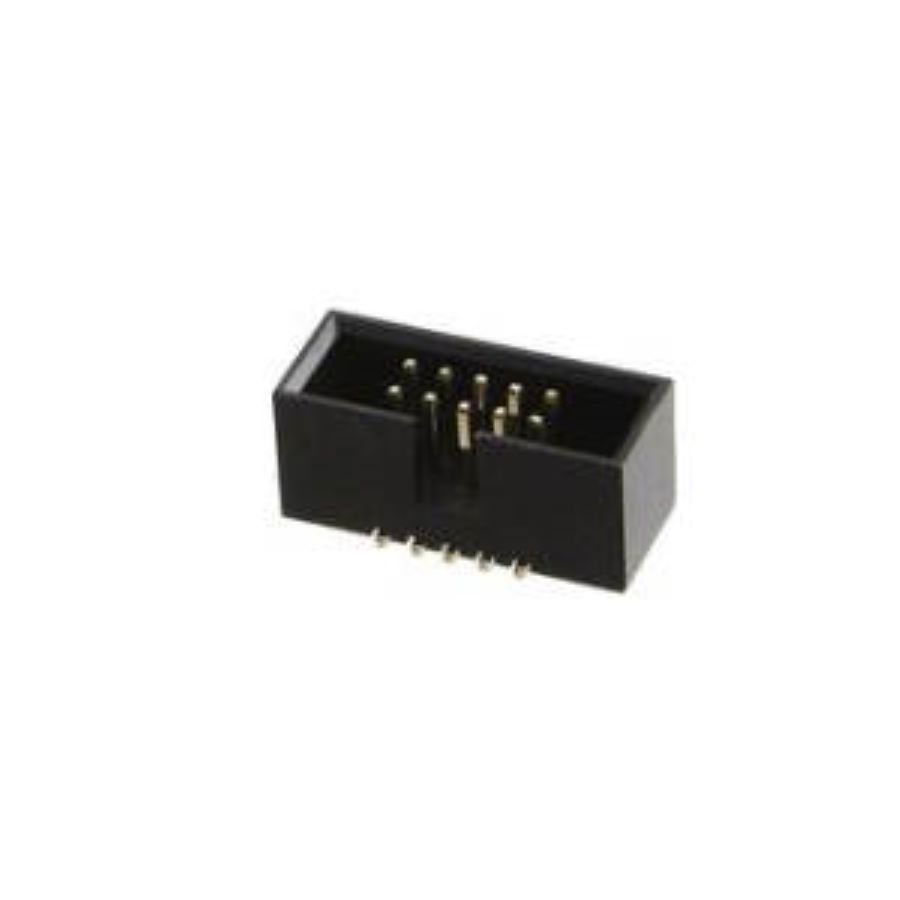

3220-10-0300-00
Manufacturer:
CNC Tech
Mfr.Part #:
3220-10-0300-00
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.55 mm |
| Packaging | Tray |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Fastening Type | Push-Pull |
| Contact Style | Male Pin |
| Contact Shape | Square |
Stock: 133269
Distributors
pcbx
pcbxUnit Price$0.50691
Ext.Price$0.50691
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50691 | $0.50691 |
| 10 | $0.43049 | $4.30490 |
| 25 | $0.40776 | $10.19400 |
| 50 | $0.38623 | $19.31150 |
| 100 | $0.36584 | $36.58400 |
| 300 | $0.34561 | $103.68300 |
| 500 | $0.32650 | $163.25000 |
| 1000 | $0.30835 | $308.35000 |
| 3000 | $0.29121 | $873.63000 |
| 5000 | $0.27502 | $1375.10000 |
| 10000 | $0.25974 | $2597.40000 |
